CA Technologies and Nebula single sign-on configuration

The following instructions assist the Identity Provider administrator with the setup of single sign-on (SSO) for Nebula with CA Technologies. Nebula only supports SAML 2.0 authentication protocol.

Get started

• The email address used for the Nebula account must match the email address used for CA.
• Log in to Nebula and go to Configure > Single Sign-on.
• Log in to your CA Administrator account and go to the Apps page.
• Ensure your environment meets the minimum operating system and external access requirements.

Add a new application in CA

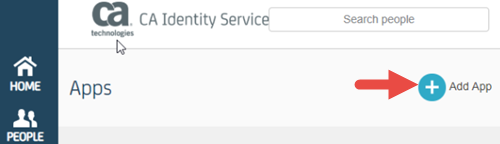

1. Click Add App.

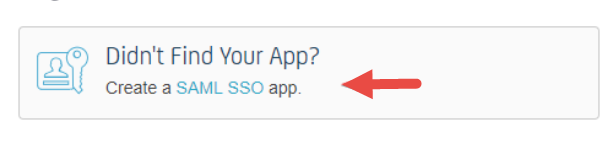

2. Click Create a SAML SSO app.

3. Name the app > click Continue.

Upload CA SSO XML file into Nebula

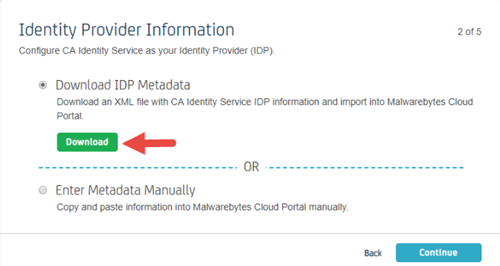

1. Select Download IDP Metadata and click Download to save the CA metadata.xml file.

2. Click Continue.
3. Single Sign-On page, have a Nebula Super Admin drag the .xml file or Choose a Different File to upload the Identity Provider (iDP) Metadata.
4. Once the .xml file is uploaded, you can set Enable Single Sign-On (SSO) to ON.

Upload Nebula XML file to CA SSO

1. On the Nebula Single Sign-On page, left-click the Service Provider Metadata link to save the metadata.xml file.

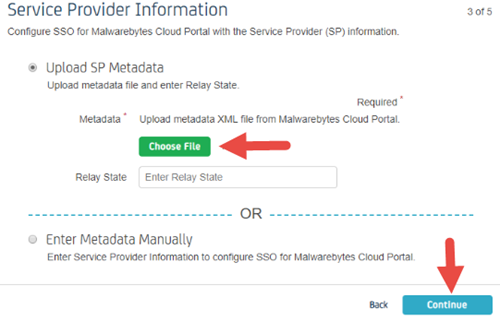

2. On the CA Service Provider configuration page, select Upload SP Metadata > click Choose File and upload the metadata.xml file.

3. Click Continue.

CA attribute mapping

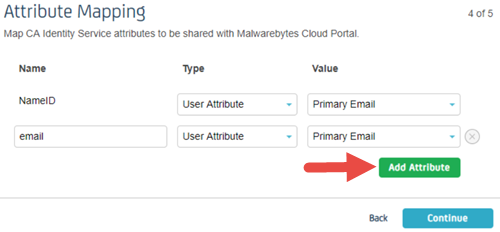

1. For attribute NameID, set Type to User Attribute > set Value to Primary Email > click Add Attribute.

2. Type email in the second Name field > set Type to User Attribute > set Value to Primary Email.
3. Click Continue.
4. Click Finish on the next page.
5. Now the application can be assigned to your Nebula administrators in CA.
