Azure AD Nebula single sign-on configuration

The following instructions assist the Identity Provider administrator with the setup of single sign-on (SSO) for Nebula with Azure AD. Nebula only supports SAML 2.0 authentication protocol.

Get started

• The email address used for the Nebula account must match the email address used for Azure AD.
• Log in to Nebula and go to Configure > Single Sign-on.
• Log in to your Azure AD Administrator account and go to Azure Active Directory > Enterprise applications.

Add the application in Azure AD

1. In Azure AD, click Enterprise applications under Azure services.
2. Click New application > Create your own application.
3. Name the application.

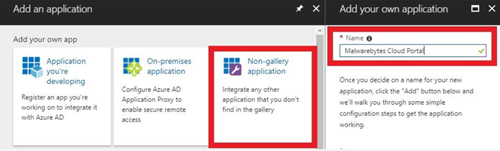

4. Select Integrate with any other application you don't find in the gallery (Non-gallery).
5. Click Create.

Configure the application SSO settings

1. Click Single sign-on, then select SAML as the Single Sign-on method.
2. In a new browser tab, log in to Nebula and go to the Configure > Single Sign-On page.
3. Click the Service Provider Metadata link to save the metadata.xml file.
4. Come back to the Azure AD browser tab and click Upload metadata file at the top.
5. Upload the metadata.xml file you downloaded from Nebula.
6. Click Add.
7. Click Save.
8. Close the Basic SAML Configuration page.

Configure application attributes

1. In Azure AD's Set up Single Sign-On with SAML screen, go to Attributes & Claims > click Edit.

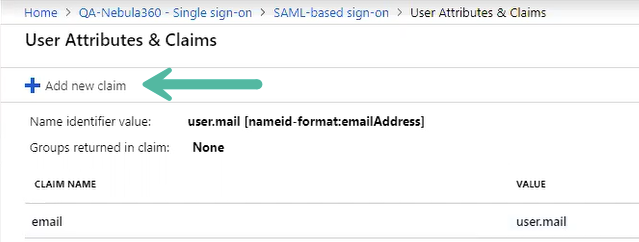

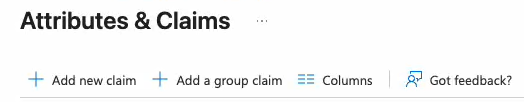

2. Click Add new claim.

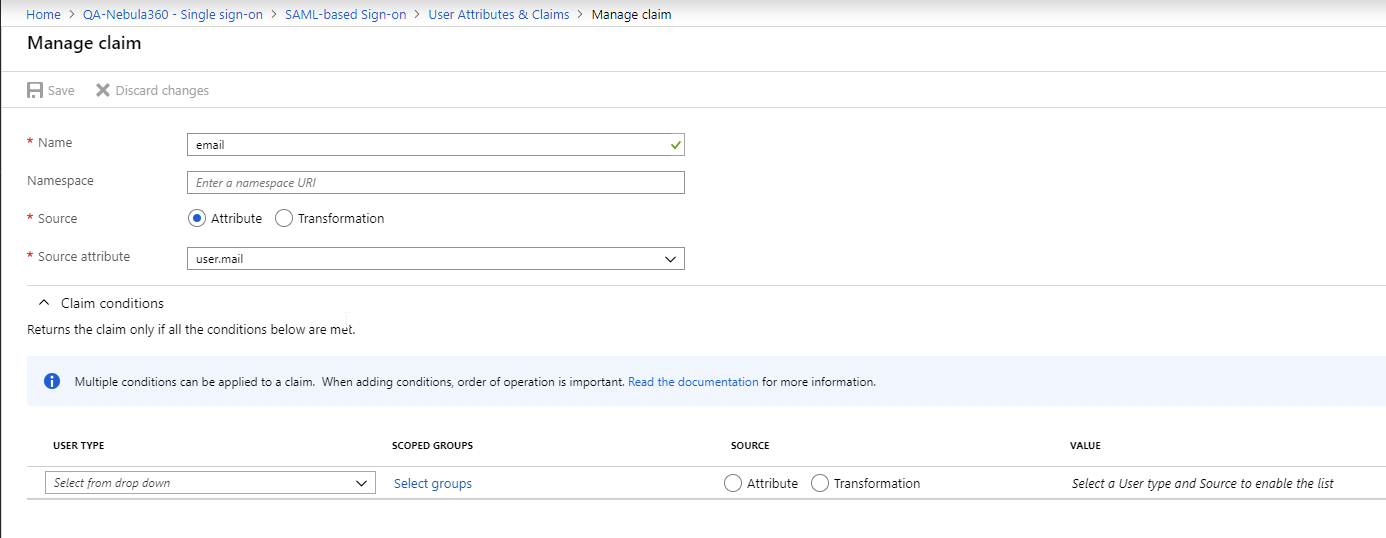

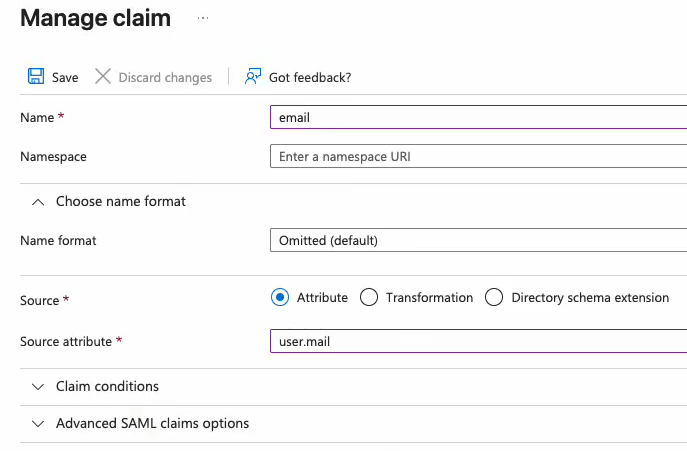

3. Add a new attribute in lowercase, exactly as shown below.
   • Name: email
   • Source attribute: user.mail

     Note: Be sure to leave the Azure namespace URL field blank.
4. Click Save.
5. Close out of the Attriute & Claims edit page to return to the app's SSO configuration page.

Upload Azure AD metadata into Nebula

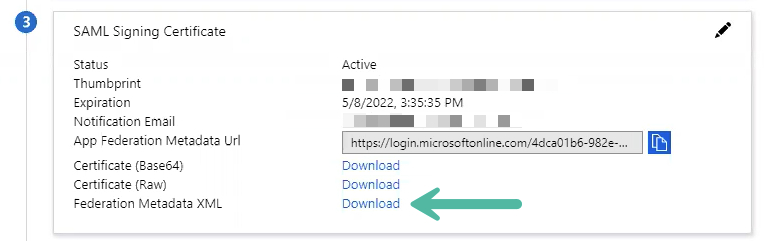

1. Download the Azure AD Federation Metadata XML file.

2. In the Nebula Single Sign-On page, have a Nebula Super Admin drag the .xml file or Choose a Different File to upload the Identity Provider (iDP) Metadata and click Apply.

Enable SSO

1. Once the metadata is uploaded, toggle on Enable SSO.
   • Toggle on Just-In-Time (JIT) Provisioning to automatically create Nebula users if they don't already exist when authenticating through Azure AD.
   • Toggle on Service Provider Initiated SSO if you will be accessing Nebula through a tile or button in Azure AD.
2. Now the application can be assigned to your Nebula administrators in Azure AD.
